2005 Ford Ranger Brake Caliper Torque Specs

When it comes to keeping your truck safe, there’s one system you should never overlook—your brakes. Whether you’re towing, off-roading, or just commuting in your 2005 Ford Ranger, knowing the correct brake caliper torque specs is essential for safety, performance, and avoiding costly mistakes.

In this comprehensive guide, we’ll walk you through all the caliper torque specs for the 2005 Ford Ranger, explain why proper torque matters, and provide essential tips for tackling a brake job on your own. Whether you’re a seasoned DIY mechanic or a weekend warrior, this blog has you covered.

Why Torque Specs Matter in Brake Systems

Every bolt in your brake system plays a role. Caliper bolts are particularly critical. Under-torquing them can lead to:

  1. Loose calipers
  2. Uneven braking
  3. Pad misalignment
  4. Potential brake failure

Over-torquing, on the other hand, risks:

  1. Stripped threads
  2. Warped caliper brackets
  3. Bolt fatigue or snapping

The sweet spot? Following factory-recommended torque specs, using a quality torque wrench, and rechecking each bolt after a short drive.

Overview of the 2005 Ford Ranger Braking System

The 2005 Ford Ranger came in several configurations—2WD, 4WD, and varying cab sizes. Its braking setup differed slightly depending on trim and options.

  1. Front brakes: All models used disc brakes with floating calipers.
  2. Rear brakes: Most models used drum brakes, though some higher trims like the Edge or FX4 came with rear disc brakes (rare).

Knowing which setup you have is the first step before gathering torque specs.

Front Brake Caliper Torque Specs

Let’s start with the most common and critical area: the front brakes. These handle about 70% of braking force and are under the most stress.

ComponentTorque Spec
Caliper Guide Pin Bolts23 lb-ft (31 Nm)
Caliper Anchor Bracket Bolts85 lb-ft (115 Nm)
Brake Hose Banjo Bolt35 lb-ft (47 Nm)

Torque Tip:

Always clean the bolts and threads before reinstallation. Add a drop of blue threadlocker (Loctite 242) to anchor bolts to prevent vibration loosening, but never use red Loctite unless explicitly recommended.

Rear Brake Caliper Torque Specs (If Equipped with Rear Discs)

Most 2005 Rangers came with rear drum brakes, but in case yours has 4-wheel disc brakes, here are the correct torque values:

ComponentTorque Spec
Rear Caliper Guide Pin Bolts23 lb-ft (31 Nm)
Rear Caliper Anchor Bracket Bolts85 lb-ft (115 Nm)
Rear Brake Hose Banjo Bolt35 lb-ft (47 Nm)

If your Ranger has drum brakes, the torque specs for the rear wheel cylinder bolts are usually 80–100 in-lbs (9–11 Nm). Adjuster star wheels don’t require torque but should be free-moving after reassembly.

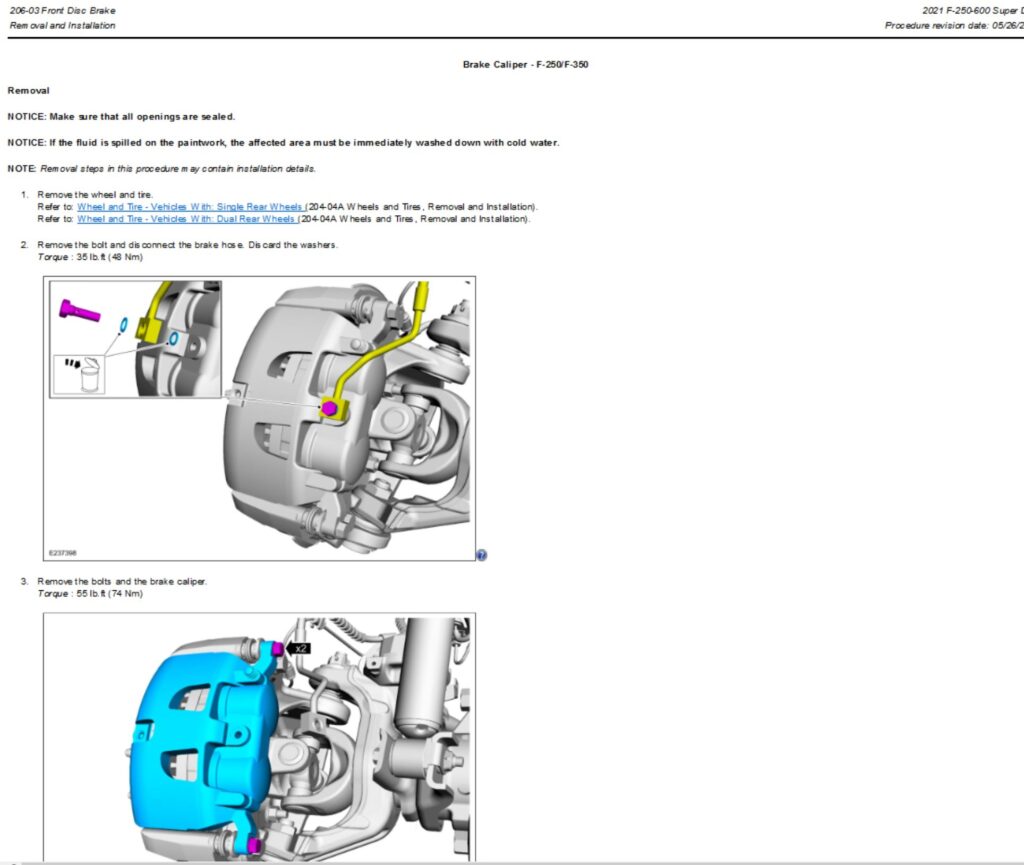

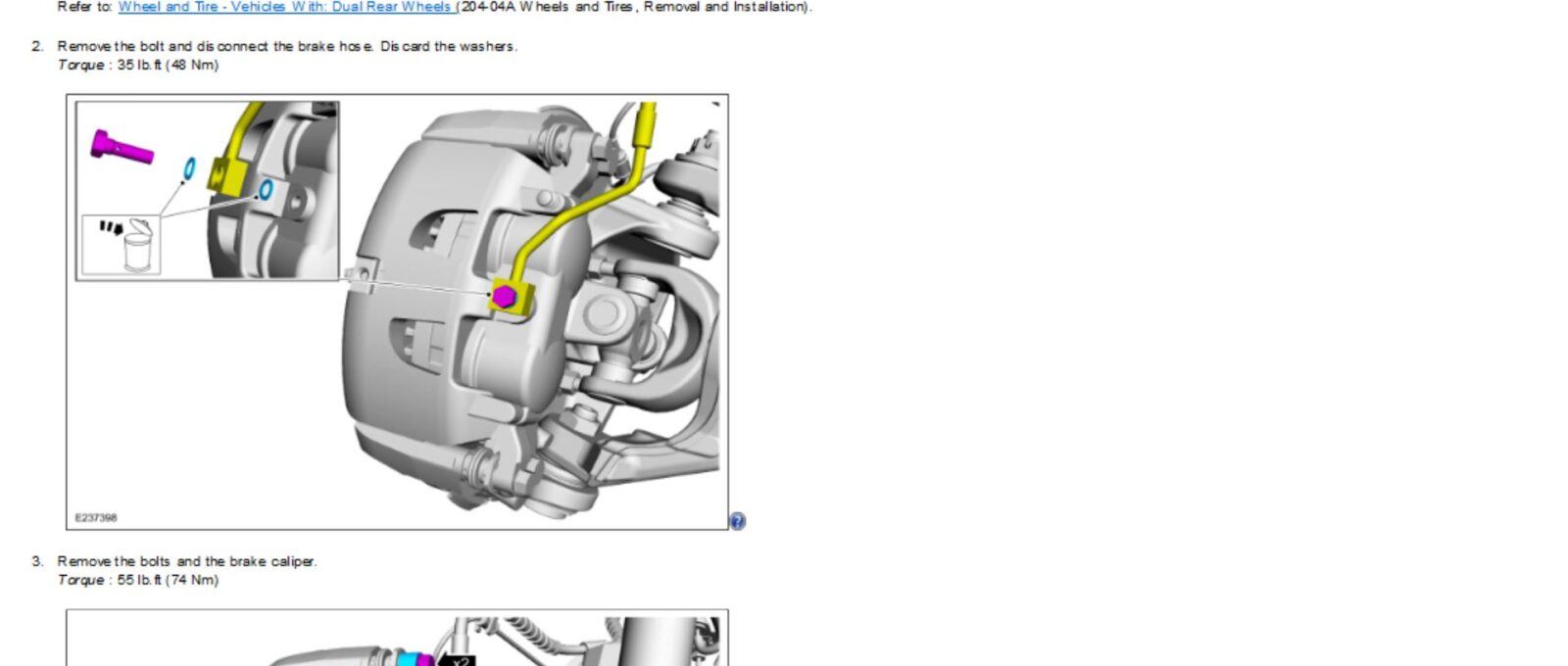

Step-by-Step Brake Job Overview (Front Calipers)

  1. Jack Up and Secure the Truck
    • Always use jack stands. Never trust a jack alone.
  2. Remove the Wheel
    • Loosen lug nuts first, then remove completely once the wheel is off the ground.
  3. Unbolt the Caliper
    • Use a 13mm socket to remove the guide pin bolts (torque to 23 lb-ft on reassembly).
    • Carefully hang the caliper with a bungee cord—do not let it hang by the hose.
  4. Remove the Caliper Bracket
    • Use an 18mm socket for the caliper bracket bolts (torque to 85 lb-ft when reassembling).
  5. Replace Pads & Inspect Rotors
    • Replace pads, inspect rotors for scoring, and replace if under minimum thickness.
  6. Reinstall with Correct Torque
    • Clean and lube slider pins.
    • Use threadlocker on anchor bolts.
    • Torque guide pins and anchor bolts to spec.
  7. Bleed If Replacing Hoses
    • If you touched the brake hose or banjo bolt (35 lb-ft), make sure to bleed air out of the system.

Retorquing Tips After a Test Drive

After your first 20–50 km (12–30 miles) of driving:

  1. Recheck all caliper bolts.
  2. Look for signs of fluid leakage around banjo bolts.
  3. Recheck brake pedal firmness—sponginess may mean air is still in the system.

Torque and Lubrication Best Practices

  1. Use a Calibrated Torque Wrench
    • A digital or click-style wrench ensures accuracy.
  2. Lubricate Slide Pins
    • Use silicone-based brake grease to prevent binding.
  3. Don’t Reuse Crushed Washers
    • Replace copper washers on banjo bolts every time to avoid leaks.
  4. Don’t Overtorque Brake Lines
    • This can strip the threads or damage the banjo bolt seating surface.
  5. Apply Torque Slowly
    • Rapid wrenching can over-torque even if the wrench doesn’t click yet.

Common Mistakes to Avoid

  1. Using an impact gun for final torque – Always torque by hand.
  2. Skipping threadlocker – Leads to backing out under heat cycles.
  3. Not cleaning the threads – Can throw off torque values due to dirt and rust.
  4. Misidentifying disc vs. drum setup – Rear brakes differ significantly.

Conclusion: Torque It Right, Stay Safe

When you’re doing brake work on your 2005 Ford Ranger, accuracy is everything. Using the right brake caliper torque specs isn’t just about doing the job properly—it’s about ensuring the safety of you, your passengers, and everyone else on the road.

Here’s a quick recap of the essential specs:

Quick Reference – 2005 Ford Ranger Brake Torque Specs

ComponentTorque (lb-ft)Torque (Nm)
Front Caliper Guide Pins23 lb-ft31 Nm
Front Caliper Bracket Bolts85 lb-ft115 Nm
Brake Hose Banjo Bolt35 lb-ft47 Nm
Rear Caliper Guide Pins23 lb-ft31 Nm
Rear Caliper Bracket Bolts85 lb-ft115 Nm

By taking your time, using the correct tools, and applying the proper torque specs, you can save money, extend your brake life, and enjoy peace of mind knowing your Ranger is ready for the road ahead.
